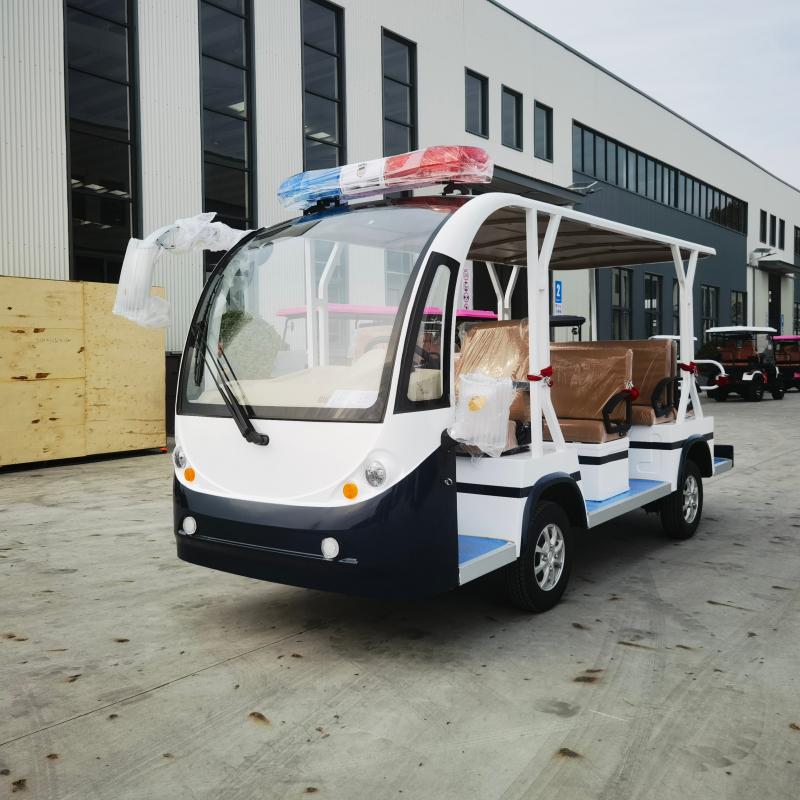

INTRODUCTION
Project content
Continuously variable speed
Technical Parameters
size: length ·width ·
height
4350×1600×2050mm
Rated Passenger
11persons
Maximum Speed (Fully Loaded)
35km/h
Minimum Turning Radius
6m
Maximum Climbing Capacity
25%
Braking Distance
≤5m
Driving Range (Unloaded)
≥100km
Wheelbase (mm)
2210
Minimum Ground Clearance
200mm
Front/Rear Track (mm)
1310/1350
Curb Weight
930kg
Rated Load Capacity
700kg
Electrical System
Battery
Lead acid/lithium
Charger
Waterproof Vehicle-mounted Intelligent Charger
Controller
Fully Intelligent Electronic Control
Motor
AC Motor
Exterior
Power Transmission System
Continuously variable speed system
Steering System
Rack-and-Pinion Steering Gear
Front Axle & Suspension
Independent Suspension
Rear Axle & Suspension
Integral Rear Axle + High-strength Steel Plate Spring +Hylescopic Shock Absoruiller
Braking System
Hydraulic Brake, Dual-circuit Hydraulic Brake, Parking Brake Device
Tire
Radial Tire
Appearance
Paint
Automotive Metallic Paint
Frame +Body
Steel Frame + Metal Body
Door
None
Lights & Signals
Combined headlamps, turn signals, combined taillights, brake lights, electric horn
Front Windshield
Tempered Glass
Interior
Seat
High-grade Simulated Leather Seat

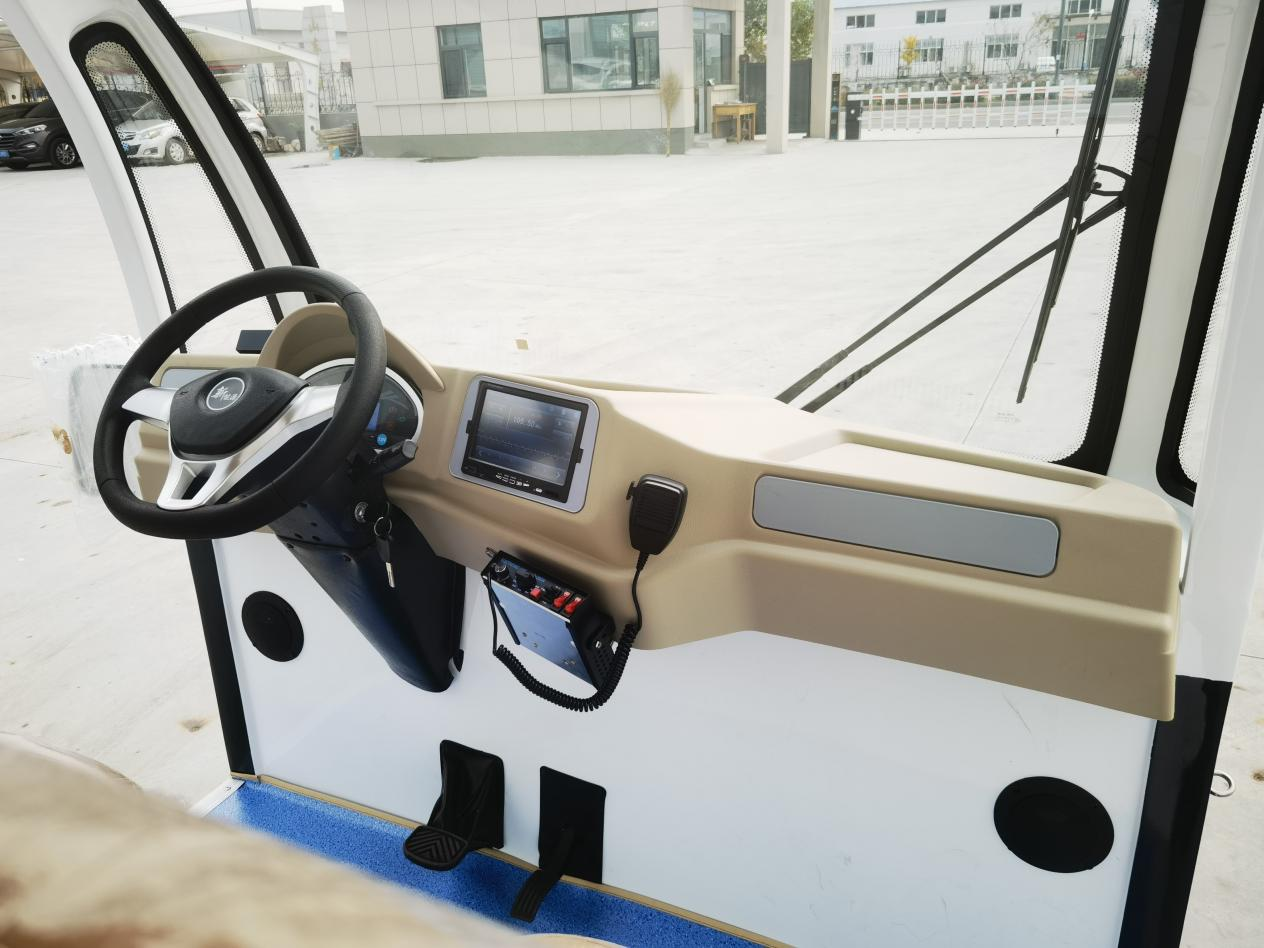

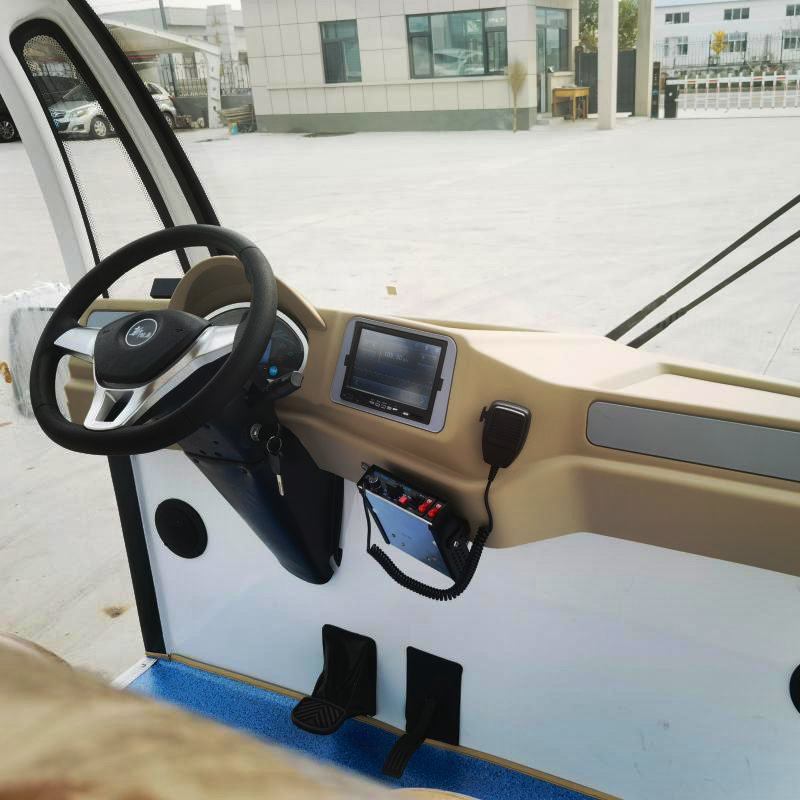

Instrument
Instrument Display / Including Voltage
Switches
Start Switch, Light Switch, Forward-Reverse Gear Switch
Steering Wheel
36CM Stearing Wheel

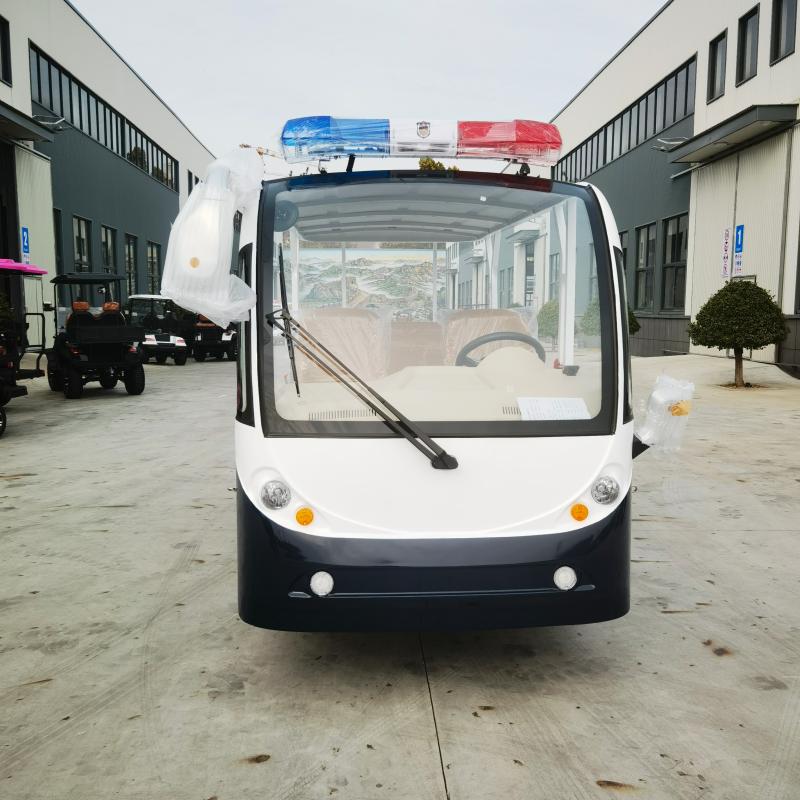

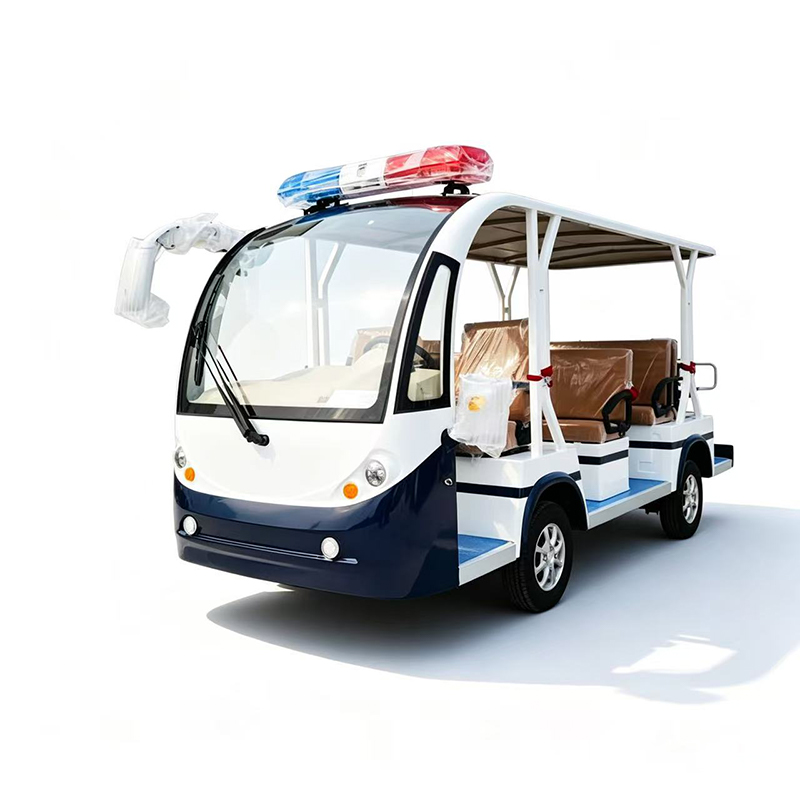

LED high-efficiency flashing alarm light
