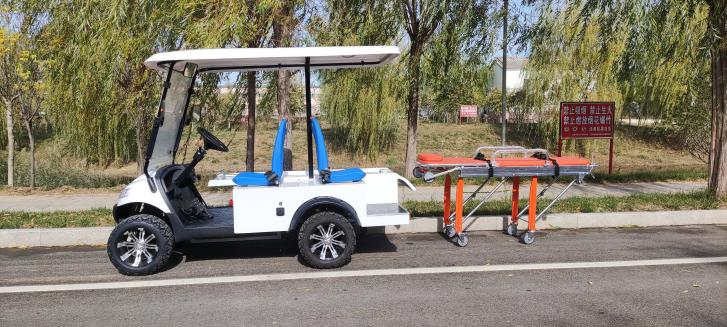

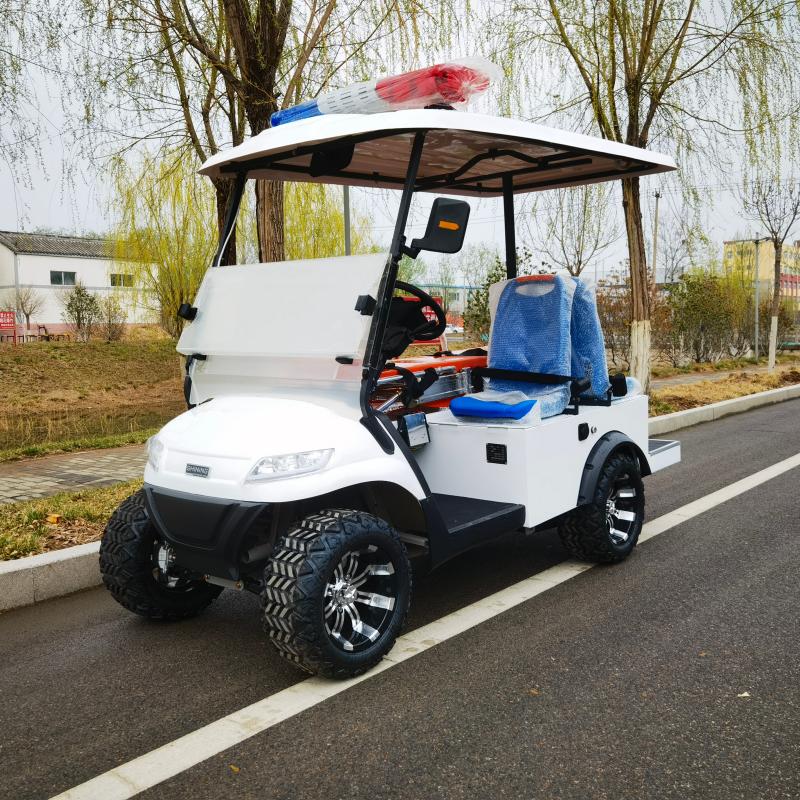

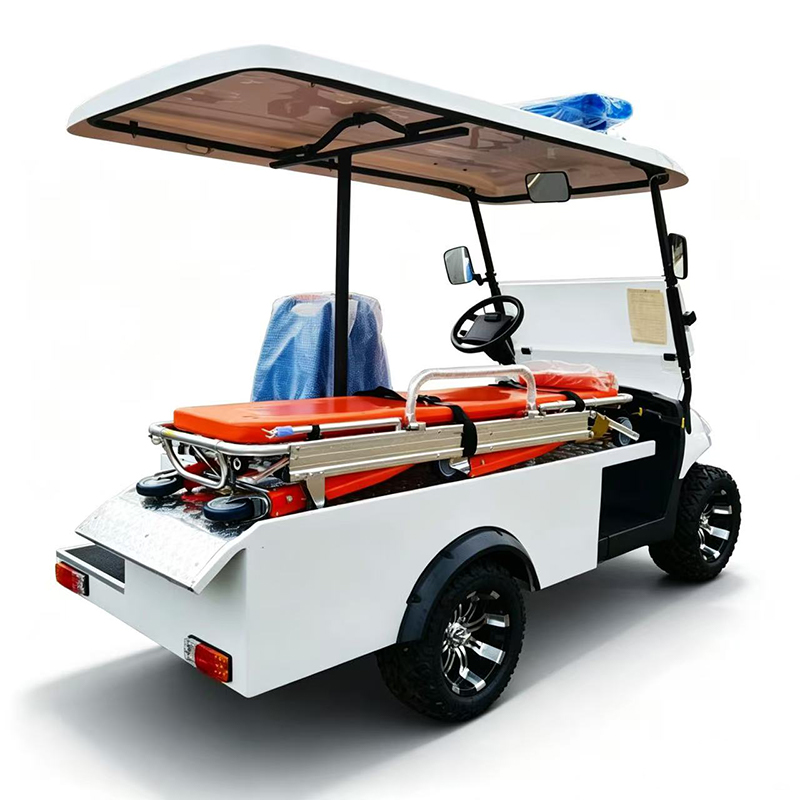

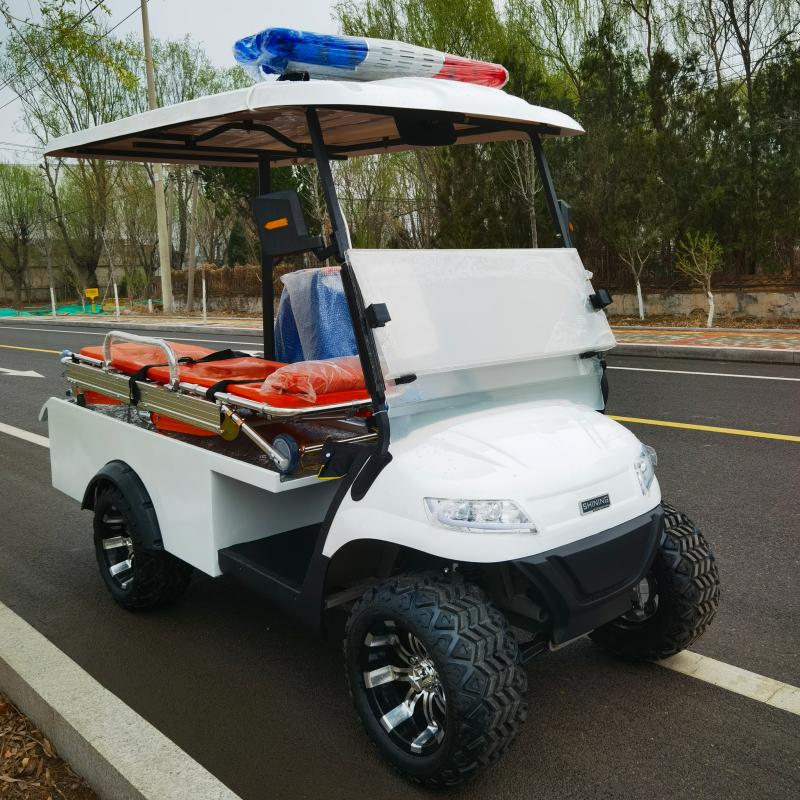

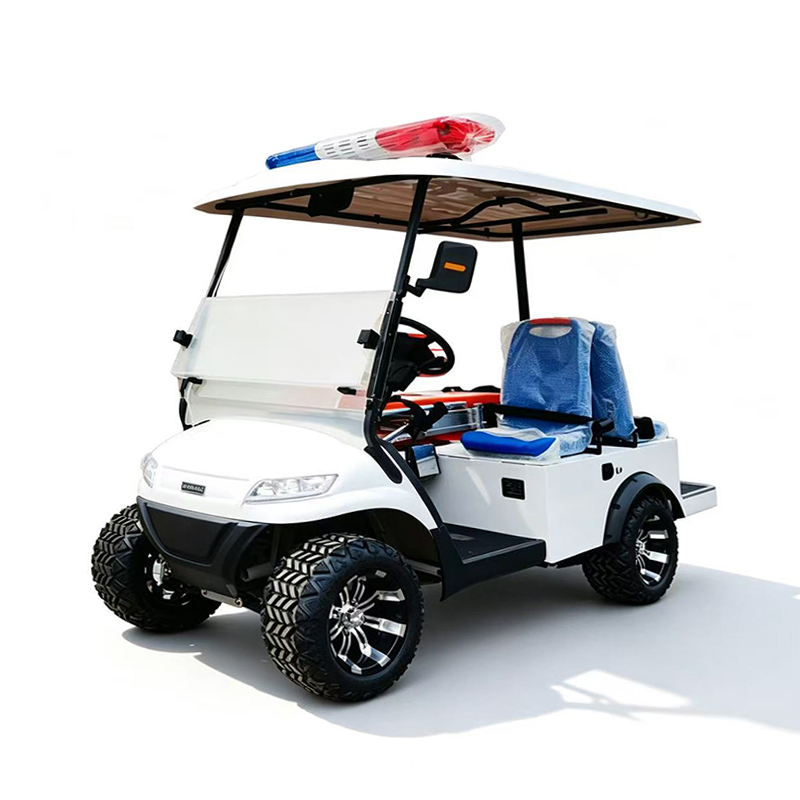

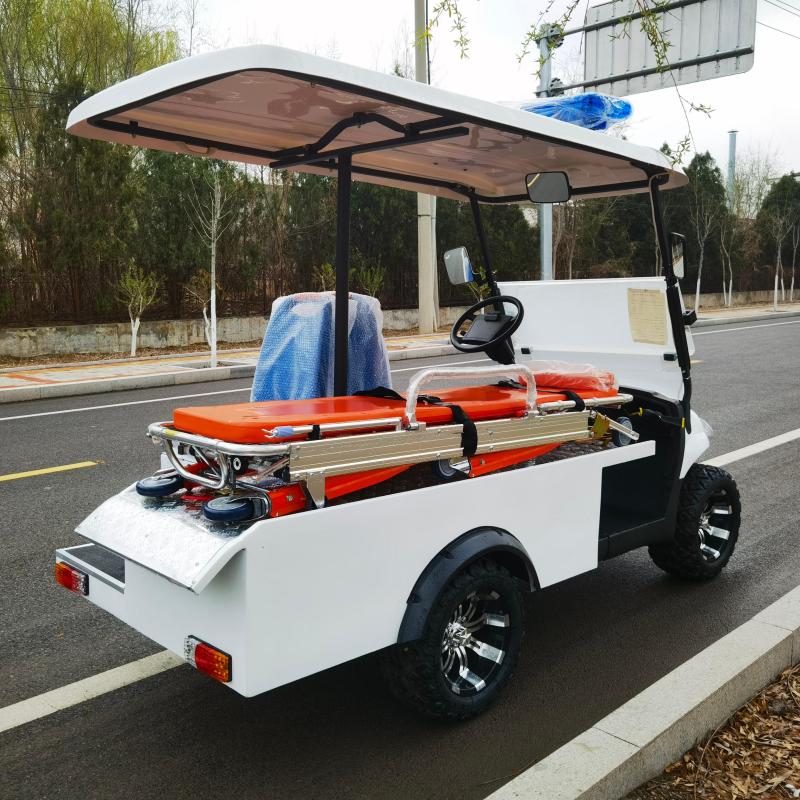

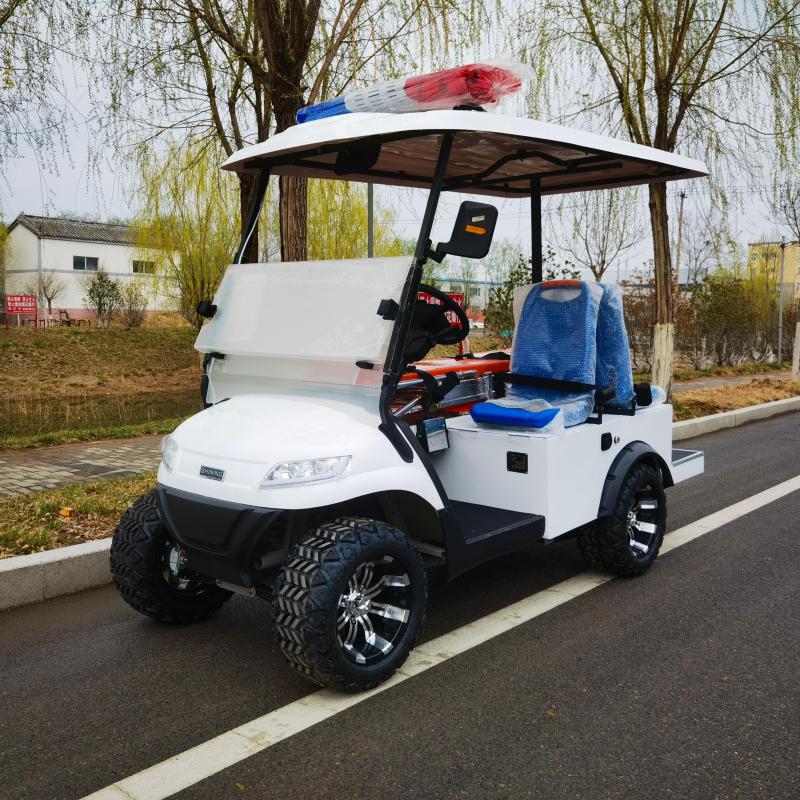

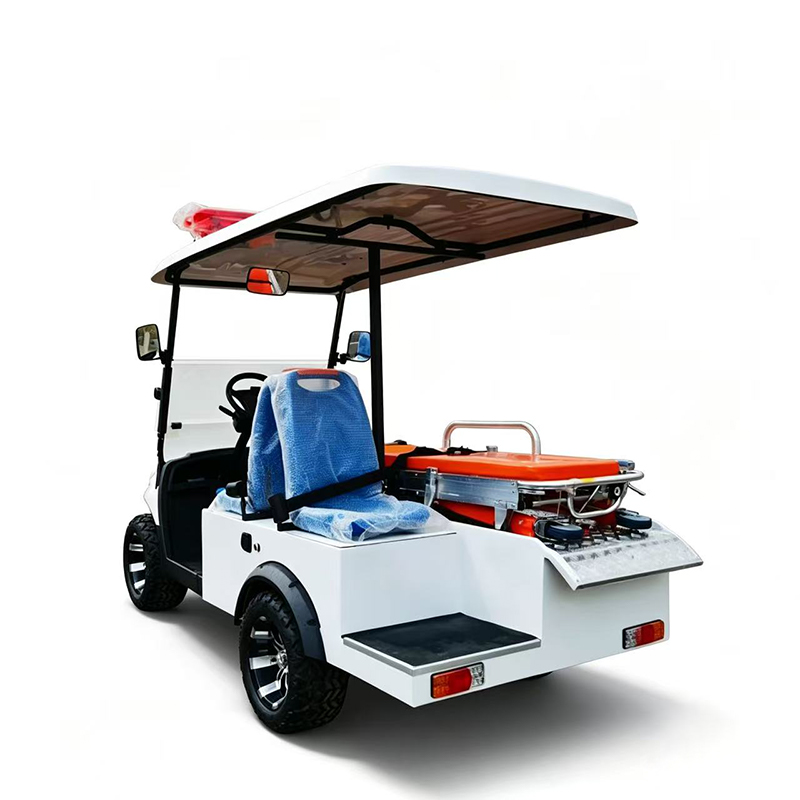

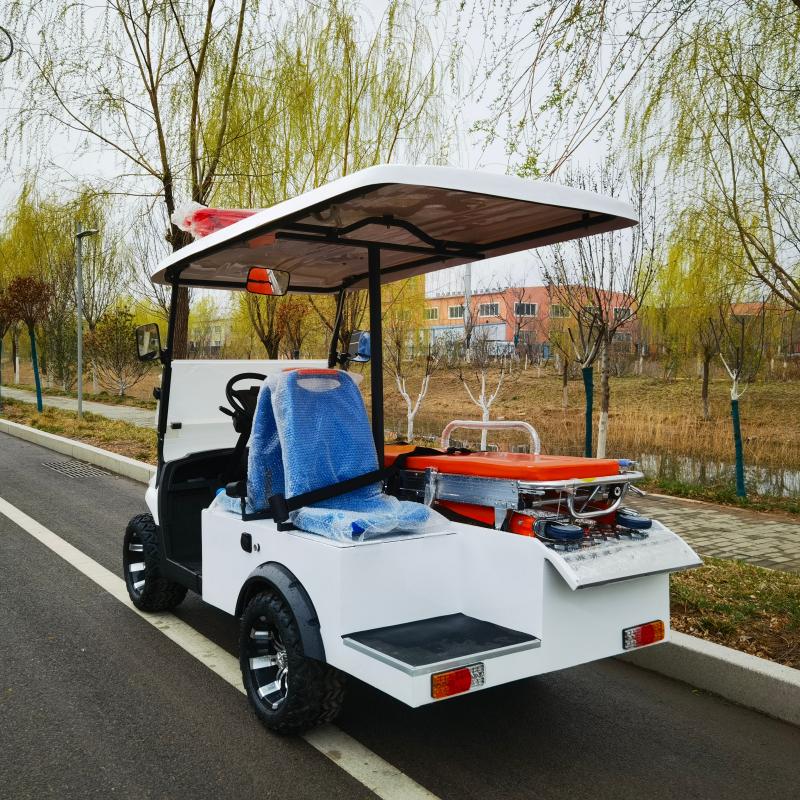

DLEV-C-2Y medical vehicle specifications
电 气 系 统 | Control | Fully Intelligent Electronic Control |
|
|
Battery | Lead acid/lithium battery |
|
Motor | AC motor |
|
Charger | Vehicular intelligent charger |
|
Charging Time | 7-8Hours |
|
Charging Input Voltage | 110-240V |
|
Electrical system | Maximum Speed | 30km/h |
|
Maximum Climbing Capacity | 20% | Braking distance | ≤5m |
|
Minimum Turning Radius | 3.9m | Minimum ground clearance | 150mm |
|
Length/Width/Height (MM) | 2800*1300*1950 | Range | 90-100km |
|
Wheel base | 1700 | Passenger | 3人 |
track(front and rear) | 900/1000 | Curb weight（kg） | 500 |
Body system | seat | Public bus seat |
|
stretcher | Professional medical stretcher |
|
Windshield | folding |
|
Chassis system | power transmission system | CVT system |
|
steering system | Rack and pinion steering gear |
|
Front suspension | Semi floating front axle |
|
Rear suspension | Integrated rear axle + high-strength steel leaf spring + cylinder hydraulic shock absorber |
|
Braking system | Four-wheel drum hydraulic brake, dual-circuit hydraulic braking system, parking brake |
|
Wheel | Vacuum aluminum alloy tire |
|
